MeXkey3 Main Menu and Hardware#

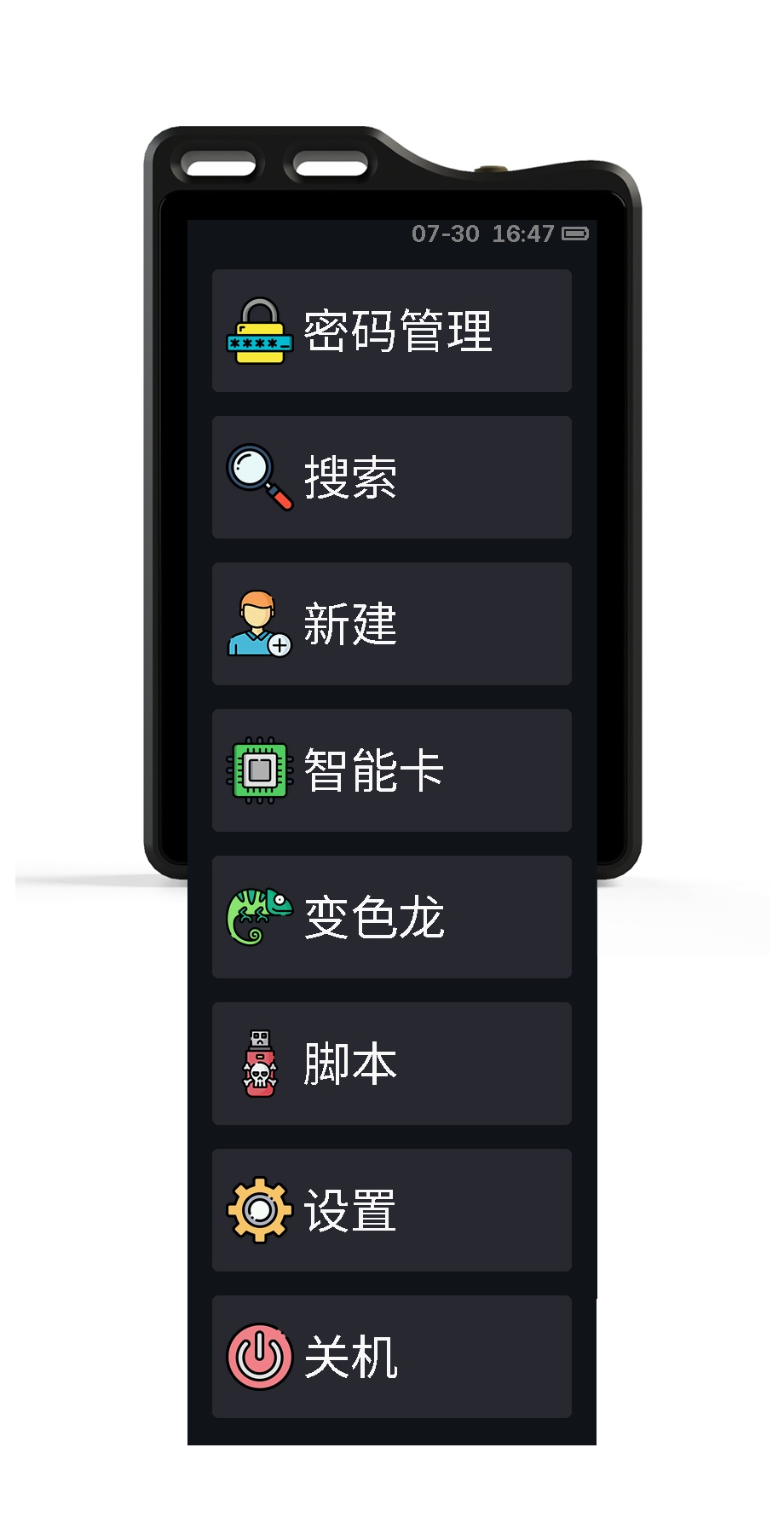

Main Menu#

Status Bar#

• Displayed when the Bluetooth input function is turned on; highlighted when Bluetooth is connected.
• RSS icon represents Chameleon 😁.
• Refresh icon indicates that the password database is loading.
• Time Time Synchronization Guide
  • Time can be set manually in the settings.

Power Button Functions#

When Powered via USB#

• Short press: Lock the screen.
• Long press (2 seconds): Reboot the system.
• Very long press (10 seconds): Force restart (use when the system is unresponsive).

When Running on Battery#

• Short press: Enter standby mode.
• Long press (2 seconds): Enter standby mode.
• Very long press (10 seconds): Force restart.

Type-C Interface Specifications#

Supports the following protocols and functions:

• Basic specification: USB 2.0
• Supported protocols:
  • HID (Human Interface Device)
  • CCID (Chip/Smart Card Interface Device)
  • MSC (Mass Storage Class)
  • NCM (Network Control Model)

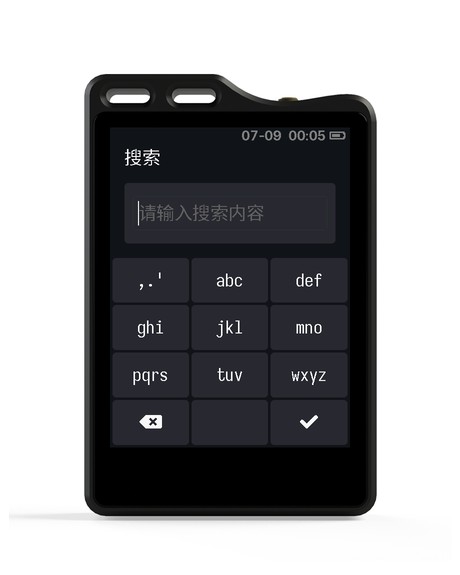

Input Method#

• Short press the confirm key: Confirm input.
• Long press the confirm key: Switch keyboard.
• Short press the delete key: Delete one character.
• Long press the delete key: Clear the input field.
• Long press on a letter or symbol key to quickly input numbers.
• Press the abc key once to input a.
• Quickly press the abc key twice to input b.

PIN Keyboard#

• The PIN keyboard is a random dynamic keyboard.
• PIN supports digits, letters, and symbols.
• Maximum PIN length is 64 characters.
• After the number of incorrect PIN attempts reaches the set limit, the device will perform a factory reset (whether data is cleared depends on your settings).
• Two consecutive incorrect PIN entries will automatically lock the screen. After that, every incorrect entry will lock the screen.
